1.6.6.  $CADENAS_SITESETUP

[Note]Note

SITESETUP saves keys with changed values, not all configuration files like CADENAS_SETUP.

Background is that in this way the complete software including configuration files can be replaced without loosing changed configuration settings.

When changing the default configuration all changes are written in a second Setup directory. In this way it is directly evident, whether changes have been made at all and if so in which scope and which exactly. The Default_User directory is also inside this Setup and will be managed as well.

To activate the function, specify an environment variable CADENAS_SITESETUP (e.g. in the file start.env). The directory must already be created. For example:

CADENAS_SITESETUP=$CADENAS/sitesetup

If the function is active and any PARTsolutions application attempts to write into SETUP, then a copy of the respective configuration file is automatically created under SITESETUP and the changes are saved there. If the default is restored, the respective file is deleted under SITESETUP again.

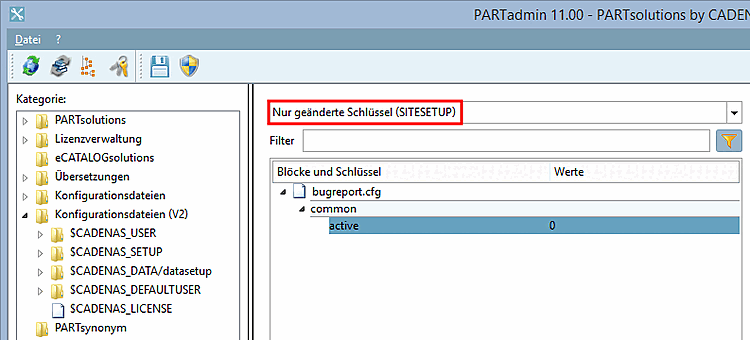

In the user interface under the Configuration files category, you can set the Only changed keys (SITESETUP) filter. Only changed keys are then displayed.

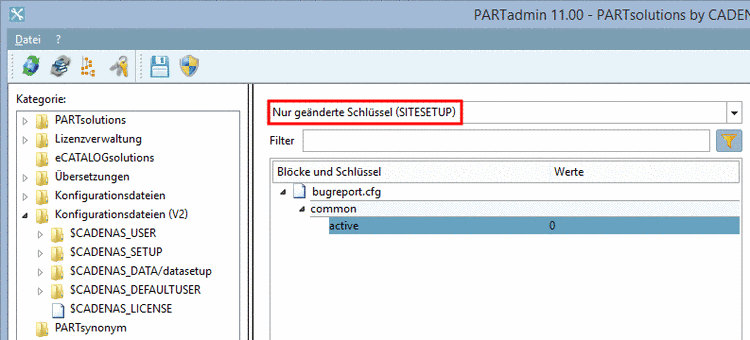

$CADENAS_SITESETUP activated

$CADENAS_SITESETUP activated

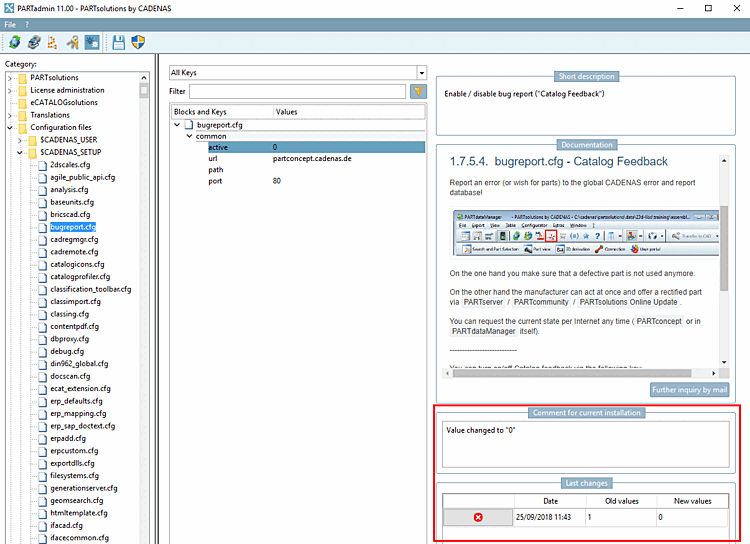

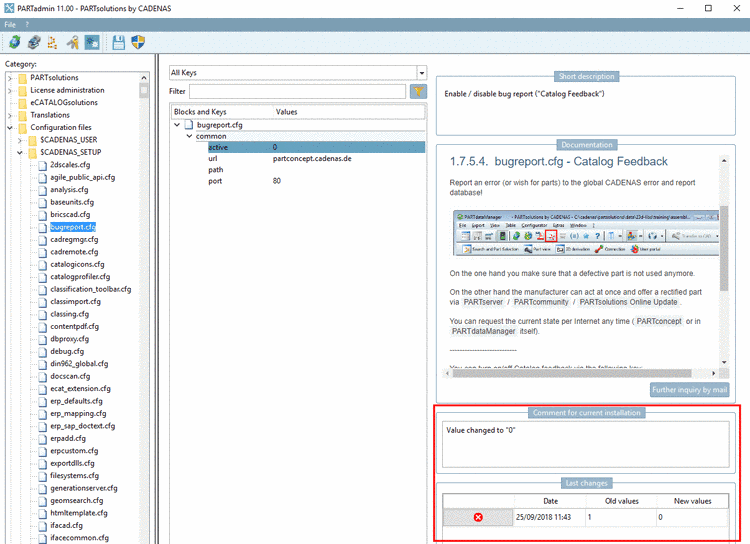

The Comment for current installation and Last changes dialog areas are also available when SITESETUP is activated.

  • Comment for current installation

    In the Comment [Comment for current installation] dialog area for the current installation [Comment for current installation], comments can be entered for changes (e.g. reason for the change)

    Entries are saved in the SITESETUP directory under $CADENAS_SITESETUP/configEditorUserIo.xml are saved.[40]

  • Last changes

    In the Last changes dialog area, the last value changes of the currently selected key are listed with the date.

    Click on an entry can be removed. Double-click on a value in the Old values or New values column to set this value again.

    Entries are saved in the SITESETUP directory under $CADENAS_SITESETUP/configEditorUserIo.xml are saved.[41]

More information

Via "Conditions" you can easily specify conditional sections in the start.env of your installation and thus use different setup directories. See Section 2.7.2.1, “start.env with conditional sections ” in Installation Manual.

You can find the environment variable under system variables of your installation as well.

Under ? Menu -> System info/Support (or F7 key) -> PARTsolutions variables you can also find the variable §CADENAS_SITESETUP. The variable is linked to the corresponding directory. (However, you must have the appropriate rights for the directory)




[40] Changes to files in the user directory are not relevant.

[41] Changes to files in the user directory are not relevant.
