Optimize drawing view on sheet [Optimize drawing view on paper size] (shortened view [Shortened view] ) is a special feature for catalogs with parts that might look bad in the 2D derivation due to their proportions.
This happens, for example, with very long cylinders. The 2D derivation would then look more like a line than a cylinder.
The user can use the Optimize drawing view on sheet [Optimize drawing view on paper size] checkbox in the 2D view dialog [2D view] to choose between standard view and abbreviated view.
![[Note]](https://webapi.partcommunity.com/service/help/latest/pages/jp/ecatalogsolutions/doc/images/note.png) | Note |
|---|---|
The attributes remain unchanged. The dimensioning is also displayed correctly in the 2D derivation with the shortened size. | |

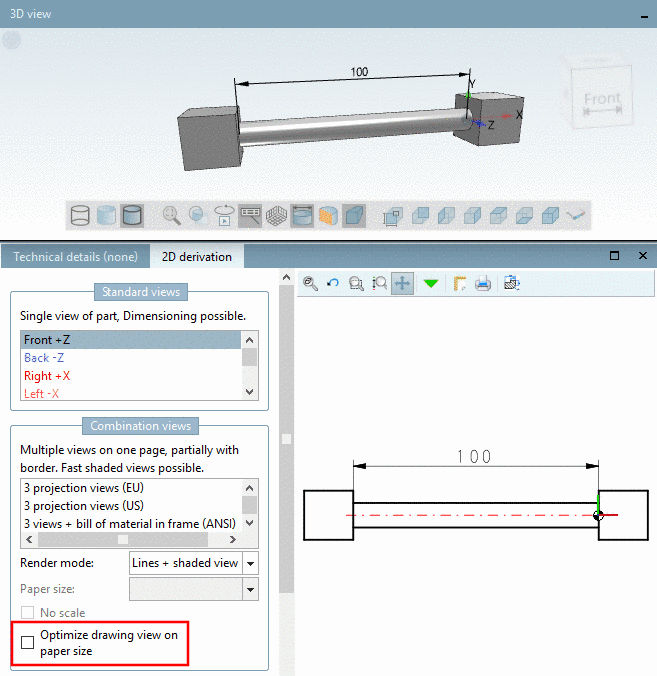

!["Optimize drawing view on sheet [Optimize drawing view on paper size] " ( "Shortened view [Shortened view] ") deactivated](https://webapi.partcommunity.com/service/help/latest/pages/jp/ecatalogsolutions/doc/resources/img/img_d6fc83d158f64f51a23cd174a54ee63f.png)
"Optimize drawing view on sheet [Optimize drawing view on paper size] " ( "Shortened view [Shortened view] ") deactivated
!["Optimize drawing view on sheet [Optimize drawing view on paper size] " ( "Shortened view [Shortened view] ") activated](https://webapi.partcommunity.com/service/help/latest/pages/jp/ecatalogsolutions/doc/resources/img/img_ad35a7a40c0c482e9b967fc8dd5ca3ea.png)
"Optimize drawing view on sheet [Optimize drawing view on paper size] " ( "Shortened view [Shortened view] ") activated
