5.12.14.3.  Edit class system

Once the Create new class system or Change class system [Modify class system] <name> dialog box has been closed, you are in the Edit class system dialog box.

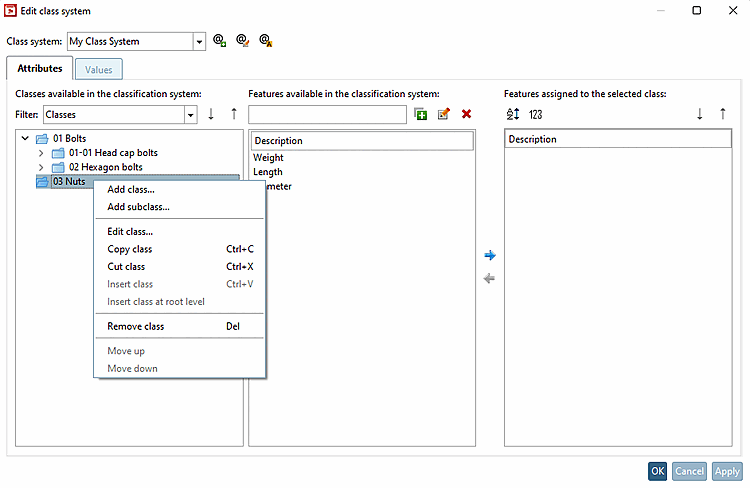

Dialog box: Edit class system

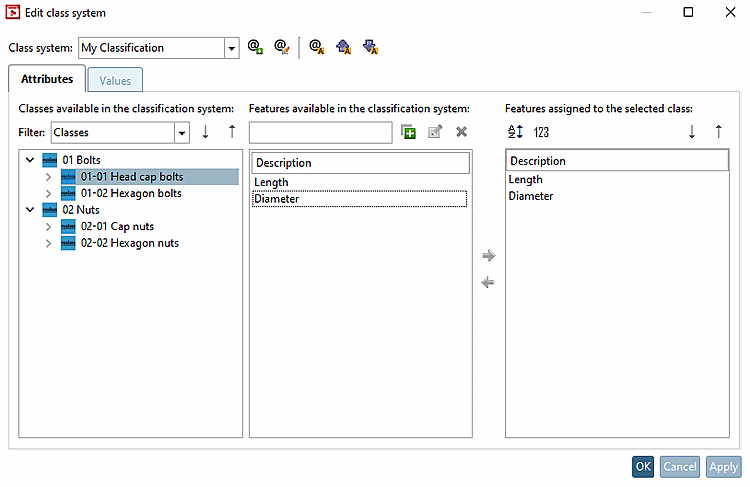

Dialog box: Edit class system

In the following the single functions/fields are described:

  • Class system: Select the class system to be edited from the list field.

  • Filter:

    The selection options depend on which class types [Types of classes] were created when the class system was created on the Create class system -> Restrictions [Limits] tab dialog page.

    Make the respective choice:

    • Axes

    • Connection points

    • Plane

    • Surfaces

    • Edges

    • Classes

    • Coordinate system

    • Sketch

Now set up your new class system, or edit an already existing.

The dialog box is subdivided in 3 areas:

  • Main window on the left side

    In the context menu (secondary mouse key) the following commands are available:

    • Add class...

    • Add subclass...

    • Edit class...

    • Remove class

    You perform the first step in the empty area with Add class [Add class...]... .

  • Features [Attributes] tab page entries are optional

The data is data under "%CADENAS_DATA%/datasetup/classsystem/<name>".
