5.14.1.1. Precondition - Environment settings

  • The procedure as it is described here needs a Revit version up from 2020 and PARTsolutions software minimum V12 SP4.

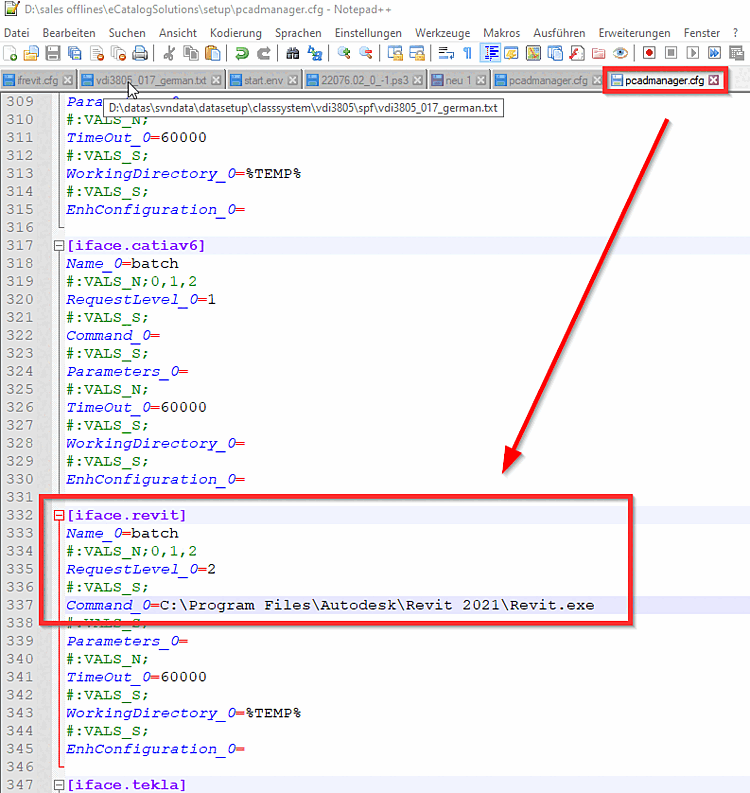

  • In the config file pcadmanager.cfg (CADENAS_SETUP), in the block [iface.revit], the key "Command_0" must contain the Revit.exe to the local installation.

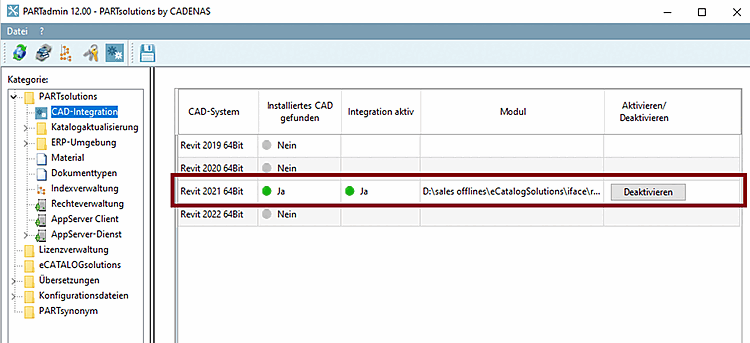

  • The used Revit version has to be activated under PARTadmin -> CAD integration -> Revit XY Version -> Activate.

  • CSV/PDT-File for export

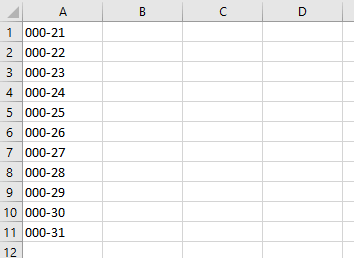

    For the export a CSV file is required, which only contains the Order Number (or MIdent) of the parts to be exported.

    Example:
